2.8 Systems

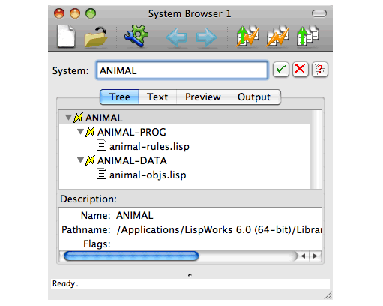

Figure 2.11 KnowledgeWorks System Browser

If you are familiar with LispWorks system definitions, look at the system definition for the animal demo in the Editor tool by choosing File > Open... and navigating to the file examples/kw/animal/defsystem.lisp . It contains a KB-SYSTEM and a KB-INIT-SYSTEM . Examine the components of each system (which can be source files or subsystems) using the System Browser which is available from the Editor via Esc X Describe System or File > Browse Parent System .

KB-SYSTEM s are reloaded when the rules are cleared. KB-INIT-SYSTEM s are reloaded when the object base is cleared.

Try this out by finding the KnowledgeWorks Listener and choosing Memory > Clear Objects and Rules . Then enter (load-system "ANIMAL") into the KnowledgeWorks Listener to reload the system animal . Both the files animal-rules and animal-objs are reloaded. Now choose Memory > Clear Objects and reload the animal system again and note how only the file animal-objs is reloaded.

KnowledgeWorks and Prolog User Guide (Macintosh version) - 6 Dec 2011
