Many tools have views which display information in a list. Items in these lists may be selected, and you can usually perform operations on selected items (for instance, by means of the standard action commands, as described in Performing operations on selected objects).
Such lists are often long, including information which you are not interested in. For instance, Common Lisp objects may contain a large number of slots, most of which are of no importance to your work.
Most such lists in the LispWorks IDE have a filter area which allows you to hide the uninteresting information. The filter area is above the list, and consists of the Filter pane into which you can enter text, toolbar buttons, and the Matches pane. There is also a filter modes dropdown menu, described in Advanced Filtering.

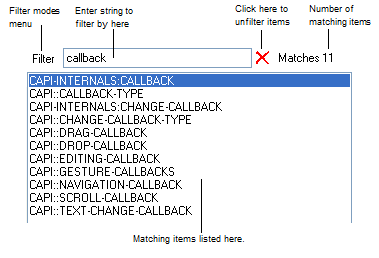

To use the filter, simply enter text in the box to the right of the Filter modes menu button. The list is filtered automatically as you type. Only those items that contain the specified string are displayed in the list - all the others are hidden from the display. The number of items that are listed is printed in the Matches area to the right of the Filter box.
To alter the way that the filter operates, select one or more options from the Filter dropdown menu to the left of the filter pane. You can select this filter modes menu using the mouse, but is more convenient with a keyboard gesture. Each gesture selects or deselects one filter mode. The keyboard gestures invoking advanced filter modes are shown in Advanced Filter modes.

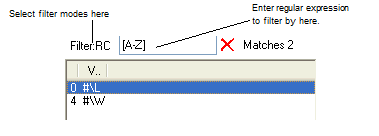

In the example illustrated below, we have inspected the string
"LispWorks", entered a regular expression which matches uppercase characters, and pressed
Ctrl+Shift+C to select the
Note: For details of the regular expression syntax, see Regular expression syntax.
