# 2.5.6 Ellipses and Elliptical Arcs in CLIM

An ellipse is an area that is the outline and interior of an ellipse. Circles are special cases of ellipses.

An elliptical arc is a path consisting of all or a portion of the outline of an ellipse. Circular arcs are special cases of elliptical arcs.

An ellipse is specified in a manner that is easy to transform, and treats all ellipses on an equal basis. An ellipse is specified by its center point and two vectors that describe a bounding parallelogram of the ellipse. The bounding parallelogram is made by adding and subtracting the vectors from the center point in the following manner:

Bounding Parallelogram of an Ellipse
x coordinatey coordinate
Center of Ellipsexcyc
Vectorsdx1

dx2

dy1

dy2

Corners of Parallelogramxc + dx1 + dx2

xc + dx1- dx2

xc - dx1- dx2

xc - dx1 + dx2

yc + dy1 + dy2

yc + dy1- dy2

yc- dy1 - dy2

yc - dy1 + dy2

The special case of an ellipse with its axes aligned with the coordinate axes can be obtained by setting dx2 and dy1 to 0, or setting dx1 and dy2 to 0.

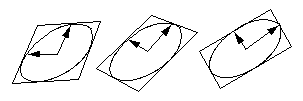

Note that several different parallelograms specify the same ellipse, as shown here:

Figure 12. Ellipses Specified by Parallelograms

One parallelogram is bound to be a rectangle--the vectors will be perpendicular and correspond to the semi-axes of the ellipse.

The following classes and functions are used to represent and operate on ellipses and elliptical arcs.

ellipse [Protocol Class]

Summary:
The protocol class that corresponds to a mathematical ellipse. This is a subclass of area. If you want to create a new class that behaves like an ellipse, it should be a subclass of ellipse. Subclasses of ellipse must obey the ellipse protocol.

ellipsep [Function]
Arguments:
object
Summary:
Returns t if object is an ellipse; otherwise, it returns nil.

standard-ellipse [Class]
Summary:
An instantiable class that implements an ellipse. This is a subclass of ellipse. This is the class that make-ellipse and make-ellipse* instantiate. Members of this class are immutable.

elliptical-arc [Protocol Class]
Summary:
The protocol class that corresponds to a mathematical elliptical arc. This is a subclass of path. If you want to create a new class that behaves like an elliptical arc, it should be a subclass of elliptical-arc. Subclasses of elliptical-arc must obey the elliptical arc protocol.

elliptical-arc-p [Function]
Arguments:
object
Summary:
Returns t if object is an elliptical arc; otherwise, it returns nil.

standard-elliptical-arc [Class]
Summary:
An instantiable class that implements an elliptical arc. This is a subclass of elliptical-arc. This is the class that make-elliptical-arc and make-elliptical-arc* instantiate. Members of this class are immutable.

2.5.6.1 - Constructor Functions for Ellipses and Elliptical Arcs in CLIM
2.5.6.2 - Accessors for CLIM Elliptical Objects
