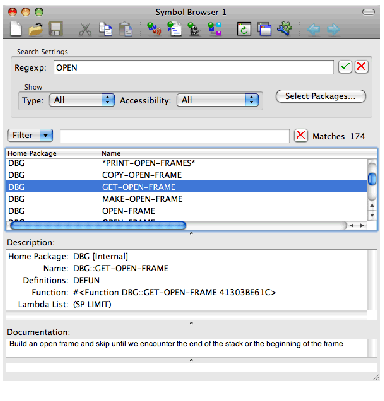

Figure 19.1 The Symbol Browser
The Symbol Browser has five main areas.
Enter a string or regular expression in the
box and press
Return or click the
button. This will match symbol names of interned symbols in a similar way to
apropos, except that it is a case-insensitive regular expression match.
By default symbols in all packages are listed, but you can restrict the search to certain packages by clicking the Select Packages... button. This raises a dialog which you use in just the same way as the Profiler's Selected Packages dialog - see Choosing packages for instructions.
When you have selected packages only those symbols whose home package is amongst the selected packages are shown, unless Accessibility (see Accessibility) is set to All , in which case symbols inherited by the selected packages are also shown.
By default all symbols found are displayed but you can restrict this to functions, classes, structures, variables, constants, keywords or others (meaning the complement of all these subsets). If you wish to see, for instance, only those symbols with a function or macro definition then select Functions in the Type option pane.
Show all accessible symbols in the selected packages
Show all present symbols in the selected packages
Show only external symbols in the selected packages
Show only internal symbols in the selected packages
The filter area allows you to filter the display of the symbols list in the same way as other tools. See Filtering information for details.
Select an item in the symbols list to display information about the symbol in the Description and Documentation areas, or to perform an operation on it. You may select multiple symbols, but in this case only the description and documentation for the first selected symbol is displayed.
The name of the symbol's home package and an indication of whether it is external or internal
The symbol name
The dspec class names for any definitions known to the system
The names of the packages (other than the home package) that the symbol is visible in
The function or macro function
The lambda list of the function or macro, if known to the system
The symbol plist, if non-nil
The value of a variable or constant
The class name, representing the class object
Select an item in the Description list to perform an operation on it. For example, if the symbol has a class definition, you can select the Class: item and do Description > Listen to transfer the class object to the Listener tool.
