3.12.2 Advanced Filtering

This section describes how you can filter list items by a regular expression match rather than a plain string match, make the match case-sensitive, and how to invert the filter.

To alter the way that the filter operates, select one or more options from the Filter dropdown menu to the left of the filter pane. You can select this filter modes menu using the mouse, but is more convenient with a keyboard gesture. Each gesture selects or deselects one filter mode. The keyboard gestures invoking advanced filter modes are shown in Advanced Filter modes.

Advanced Filter modes

Keyboard gesture

Filter mode

Description

Ctrl+Shift+R

Regexp Search

Filters by regular expression matching

Ctrl+Shift+E

Exclude Matches

Excludes items matching the filter

Ctrl+Shift+C

Case Sensitive

Filters by a case-sensitive comparison

The choice of items displayed changes according to the content of the filter pane and the selected filter options. The label on the Filter dropdown changes to indicate your selected filter options.

In the example illustrated below, we have inspected the string "LispWorks" , entered a regular expression which matches uppercase characters, and pressed Ctrl+Shift+R Ctrl+Shift+C to select the Regexp Search and Case Sensitive filter modes.

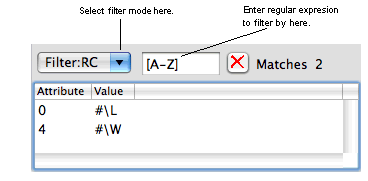

Figure 3.10 Filter area with regular expression match

Now press Ctrl+Shift+E to select the Exclude Matches filter option. Only the lowercase characters of the string "LispWorks" are displayed in the list.

Note: For details of the regular expression syntax, see Regular expression syntax.

Note: The three filter modes are mutually independent.
